Enhancing Corrosion Resistance

Enhancing Corrosion Resistance Through Nitriding: A Comprehensive Guide

In the world of metal surface treatments, nitriding stands out as a versatile and effective method for improving the durability and performance of components across various industries. While nitriding is renowned for boosting surface hardness and wear resistance, one of its most valuable attributes is its ability to significantly enhance corrosion resistance. This article explores how nitriding achieves this, the factors that influence its effectiveness, comparisons with other treatments, and real-world applications, drawing on the established processes of liquid salt bath nitrocarburizing.

At Nitrera Technologies, corrosion resistance consistently ranks among the most valued benefits our clients experience. Whether you're protecting critical defense components, extending the life of food processing equipment, or ensuring reliability in oil and gas applications, our liquid nitriding process provides superior protection that outlasts conventional treatments.

Understanding Corrosion

Corrosion occurs when metals react with their environment, particularly oxygen and moisture, leading to oxidation and material degradation. Traditional steel components are particularly vulnerable, with rust formation being the most familiar example of this destructive process. Corrosion can create surface pits where fatigue cracking can initiate, eventually leading to sudden catastrophic failure.

What is Nitriding and How Does It Combat Corrosion?

Liquid nitrocarburizing involves immersing metal parts in a molten salt bath at approximately 1055°F (568°C), where nitrogen (and some carbon) is diffused into the surface to form a hardened zone of nitride compounds. This process creates a ceramic-like barrier that not only increases hardness (typically 55-70 HRC depending on the material) but also acts as a shield against corrosive elements such as moisture, chemicals, and salts.

The corrosion resistance stems from the formation of this nitride layer, which prevents oxygen and other corrosive agents from penetrating the base metal. Additionally, an oxidizing quench step adds a black iron-oxide (Fe3O4) layer that further bolsters protection. Furthermore, protective oils& sealants are often applied and allowed to soak into the micro-porous surface that is created by the nitriding process.

The Multi-Layered Defense System

Unlike surface coatings & plating's that can chip, peel, and allow rust to penetrate & spread between the coating/plating and the base material, nitriding creates an integral protective system that becomes part of the component itself. This defense operates through 3 primary mechanisms:

1. Iron-Nitride Compound Layer: The nitriding process forms extremely hard iron-nitride compounds (primarily FeN and Fe₄N) at the surface. This ceramic-like layer acts as an impermeable barrier against moisture, oxygen, salts, and chemical exposure.

2. Black Oxide Passivation: Our process includes a black oxide (magnetite Fe₃O₄) finishing step that creates a further chemically stabilized zone of oxide compounds. This stable oxide layer provides excellent corrosion resistance and the characteristic attractive black finish.

3. Surface porosity: The nitriding process forms a micro-porous zone in the outer most region of the nitrided case. This micro-porosity holds lubrication oils and corrosion inhibitors, enhancing long term performance.

Together, these layers outperform conventional protective methods like paint, phosphate, bluing, or plating’s which can chip, flake, or wear away.

Corrosion Resistance Benchmarks

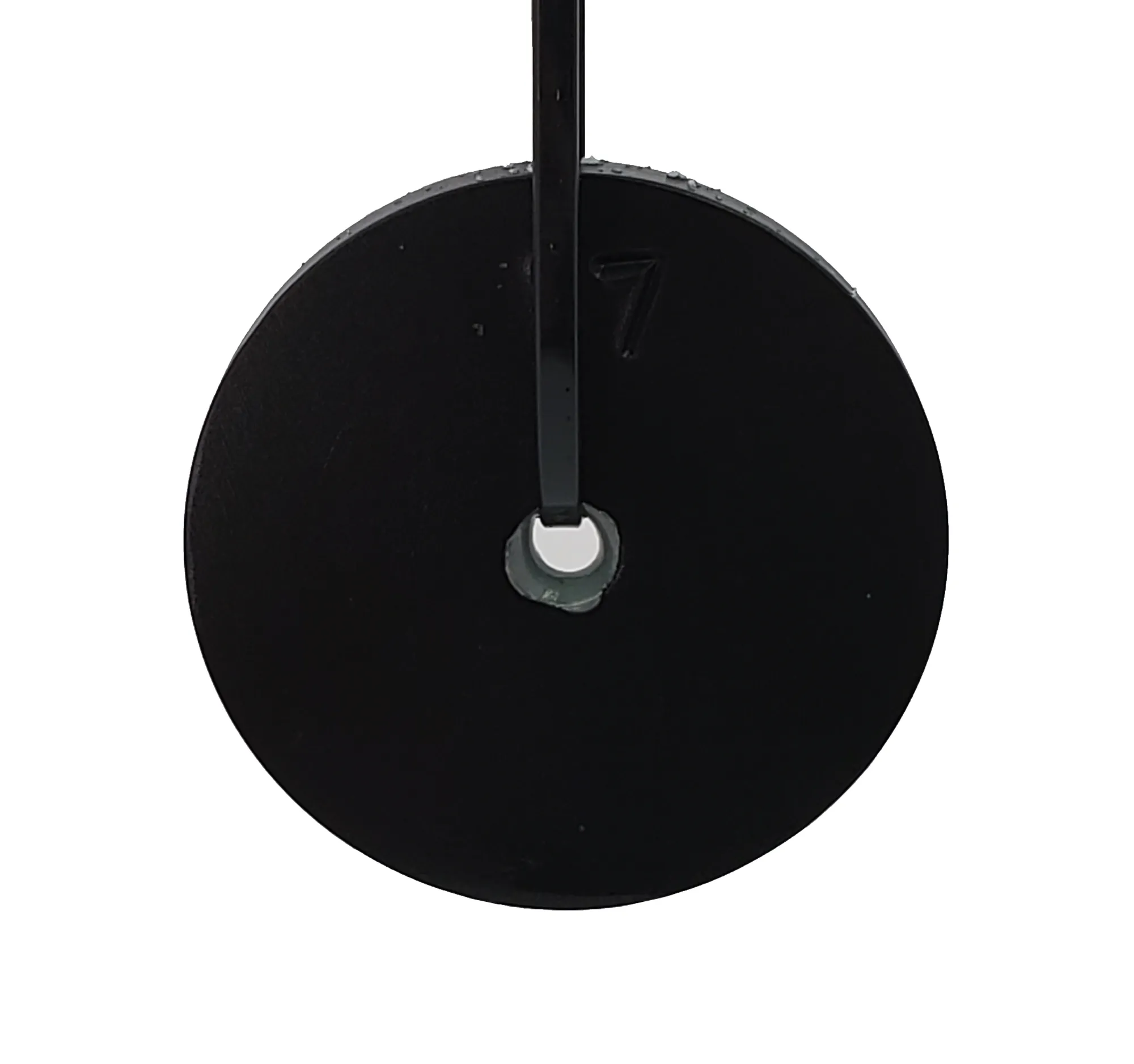

• Salt Spray Testing (ASTMB117): The gold standard for accelerated corrosion testing, ASTM B117 exposes components to a 5% salt spray environment at 95°F(35°C). Nitrided carbon and low-alloy steels achieve up to 400 hours of protection with minimal corrosion—far surpassing untreated materials that may show significant rust within 24 hours. This laboratory performance translates directly to exceptional real-world durability.
• Immersion Test – ASTM G31: This test uses a solution of 3% sodium chloride and 1% hydrogen peroxide to simulate a corrosive and oxidizing environment. Our Internal data shows significant improvement in corrosion resistance for carbon and low alloy steels, as well as the varying corrosion properties for stainless steel compared to their raw material conditions.
• Cyclic Corrosion Testing. More representative of real-world conditions, cyclic tests alternate between salt spray, humidity, and dry conditions. Nitrided components consistently outperform other surface treatments in these demanding protocols.
• Chemical Exposure: Nitrided surfaces resist industrial solvents, lubricants, fuels, and harsh environments such as hydrogen sulphide (H₂S)— ideal for aerospace, oil & gas, and chemical plant equipment.
• Resistance to Sulfide Stress Cracking (SSC): By hardening the surface and reducing stress concentrators, nitrided components show improved resistance to H₂S-related corrosion and cracking.
• High-Temperature Stability: Protection holds up from freezing conditions to 750°F (400°C) *, covering a wide range of industrial and automotive environments.

‍

*Continuous service at 750°F (400°C) and up to 1020°F (550 °C) depending on how brief the temperature exposure is.
‍

Material-Specific Corrosion Performance

Learn more about the per material corrosion resistance in our “Nitriding Options” Article (Application Table).

Carbon, Low-Alloy, and Tool Steels: Outstanding Protection! These materials experience the most dramatic improvement in corrosion resistance from nitrocarburizing. Common alloys like 1018 & 4140 see tremendous increases in corrosion resistance, making them ideal candidates for corrosive environments.

Stainless Steels - Enhanced with Proper Process & Material Combination: Liquid nitriding is among the most effective methods for Nitriding stainless steel, producing a hard and superior nitride layer on the surface. However, corrosion performance of the Nitride layer depends on the steel’s type and composition. Ferritic and austenitic grades (e.g., 300 series and 405) show reduced corrosion resistance, while martensitic and precipitation-hardened steels (e.g., 416 and 17-4PH), especially when treated with the QPQ process, can regain their original corrosion properties after Nitriding.

Cast Irons (65-45-12): Nodular and grey cast irons show modest improvement, though graphite inclusions create localized areas that interrupt nitriding. For critical corrosion applications, steel alternatives are often recommended.
‍

Process Variants: Optimizing for Your Application

Learn more about the Q QP QPQ process variants in our “Nitriding Options” Article (Application Table).

Q Process (Nitride + Black Oxide)

Best for: Strong baseline corrosion resistance with a durable black finish

• Corrosion Performance: Excellent baseline protection for carbon and low-alloy steels
• Finish: Characteristic black matte appearance
• Cost: Most economical option (lowest price & fastest delivery)
  ‍

QP Process (Nitride + Black Oxide + Polish)

Best for: Applications requiring improved surface finish & aesthetics

• Corrosion Performance: Similar to Q process with enhanced surface smoothness
• Finish: Satin finish, reduced surface roughness to ~16 µin RA
• Applications: Sealing surfaces, precision components

QPQ Process (Nitride + Black Oxide + Polish + Re-Oxidize)

Best for: Maximum corrosion resistance in the most demanding environments.

• Corrosion Performance: Superior protection, especially for stainless steels
• Finish: Satin finish, reduced surface roughness to ~16 µin RA
• Applications: Oil & gas, extreme environments
  ‍

Want to determine the optimal material & process combination for your application? Our experts can help you select the right variant based on your specific corrosion environment and performance requirements.

Industry Applications: Real-World Corrosion Solutions

Oil and Gas: Extreme Downhole Conditions

• Challenge: Hydrogen sulfide, water, abrasive conditions, and high pressures
• Solution: Nitrided drilling components and processing equipment
• Results: Enhanced reliability and extended service intervals in critical applications
  ‍

Food Processing: Chemical Resistance and Safety

• Challenge: Cleaning chemicals, moisture, and food safety requirements
• Solution: QPQ-processed equipment for non-acidic food applications
• Results: Regulatory compliance with superior corrosion and wear protection
  ‍

Note: For acidic food applications, polishing away the black oxide layer after nitriding may be recommended to ensure optimal food safety.

Defense and Aerospace: Mission-Critical Reliability

• Challenge: Components cannot fail due to corrosion in critical applications
• Solution: Nitrided military hardware and aircraft components
• Results: Proven performance in diverse climates and operational conditions
  ‍

Firearms: Protection Against Corrosive Elements + Jewelry Grade Finish

• Challenge: Ammunition residues, humidity, and field exposure
• Solution: Complete firearm component nitriding with our specialized AL QP process
• Results: Superior protection compared to traditional bluing, with enhanced wear resistance
  ‍

Comparing Nitriding to Alternative Treatments

Chrome Plating vs. Nitriding

• Environmental Impact: Nitriding eliminates hexavalent chromium concerns, producing lower toxic waste and using less energy.
• Corrosion Performance: Comparable or superior corrosion resistance, with nitriding forming a stable nitride barrier that prevents penetration by moisture and chemicals.
• Process Safety: Less toxic waste or health hazards, making nitriding a greener choice for corrosion-critical applications.
• Maintenance: Nitriding requires no reapplication, unlike chrome, which can     degrade if damaged.
  ‍

Paint and Powder Coatings vs. Nitriding

• Mechanical Damage: Nitrided surfaces maintain corrosion protection even when scratched, unlike coatings that fail upon abrasion or impact.
• UV Resistance: No degradation from sunlight exposure, ensuring long-term stability in outdoor environments.
• Temperature Range: Stable protection from sub-freezing to 750°F (400°C), far exceeding most organic coatings.‍
• Maintenance: No periodic recoating required, reducing costs over the     component's lifecycle.
  ‍

Conventional Black Oxidizing vs. Nitriding

• Protection Level: Nitriding achieves up to 400 hours in ASTM B117 salt spray tests vs. hours for standard bluing, offering superior resistance to moisture and salts.
• Service Life: Decades of corrosion protection vs. annual maintenance with oils or waxes, minimizing upkeep in corrosive settings‍
• Chemical Resistance: Nitriding better withstands chlorides, solvents, and atmospheric pollutants.‍
• Durability: Integral nitride layer resists corrosion even under mechanical stress, unlike bluing’s thinner magnetite coating.
  ‍

Gas Nitriding vs. Liquid Nitriding

• Environmental Impact: Liquid nitriding is greener with very little ammonia emissions, unlike gas nitriding, which involves longer cycles and environmental concerns.
• Corrosion Resistance: Both provide corrosion protection, but liquid nitriding is superior with a thicker oxide layer.
• Process Efficiency: Liquid nitriding offers shorter cycles (2 hours vs dozens of hours), improving throughput for corrosion-resistant components.‍
• Application Suitability: Liquid nitriding is ideal for high-corrosion environments due to its robust oxide layer.
  ‍

Induction Hardening vs. Nitriding

• Corrosion Resistance: Induction hardening provides no corrosion protection, while nitriding’s nitride and oxide layers significantly resist rust, salts, and chemicals.‍
• Environmental Suitability: Nitriding excels in humid or chemical environments; induction hardening lacks inherent corrosion barriers.
• Longevity: Nitriding ensures long-term corrosion resistance without additional coatings, unlike induction-hardened parts that often require secondary treatments.
• Process Control: Nitriding’s diffusion-based process ensures uniform corrosion protection across complex geometries.
  ‍

Carburizing vs. Nitriding

• Corrosion Resistance: Nitriding’s nitride layer offers superior protection against oxidation and pitting compared to carburizing.
• Environmental Impact: Nitriding uses lower temperatures and produces less waste than carburizing, which requires high-energy furnaces.
• Chemical Stability: Nitrided surfaces better resist chlorides, moisture, and industrial pollutants, ideal for aggressive environments.
• Maintenance: Nitriding provides standalone corrosion protection, while     carburized parts often need additional coatings.
  ‍

Phosphating vs. Nitriding

• Corrosion Protection: Phosphating (e.g., manganese or zinc) offers mild to moderate resistance, typically as a paint base, while nitriding delivers superior, standalone protection in salt spray tests.
• Durability: Nitriding’s integral layer resists corrosion even under mechanical stress, unlike phosphating, which can degrade without supplementary coatings.
• Environmental Suitability: Nitriding excels in aggressive chemical or humid conditions; phosphating suits milder environments.
• Maintenance: Nitriding requires less upkeep than phosphating, which often needs oils or paints to maintain protection.
  ‍

Galvanizing vs. Nitriding

• Protection Mechanism : Galvanizing uses sacrificial zinc for excellent cathodic protection, but nitriding modifies the steel for integral, non-flaking resistance without added thickness.
• Corrosion in Harsh Environments: Galvanizing excels in atmospheric corrosion but can degrade in high-heat or chemical settings; nitriding maintains performance up to 750°F.
• Aesthetics and Cost: Galvanizing leaves a spangled finish and is cost-effective for large structures; nitriding offers a low-tolerance sleek black finish for precision parts.
• Environmental Impact: Nitriding avoids zinc runoff issues, making it greener for dynamic or environmentally sensitive applications.
  ‍

Technical Specifications and Testing

Salt Spray Performance (ASTM B117)

• Carbon Steels: up to 400 hours typical performance
• Low-Alloy Steels: up to 400 hours typical performance
• Tool Steels: up to 400 hours typical performance
• Comparison: Untreated materials typically fail within 24-48 hours
  ‍

Surface Hardness Increase

• Carbon Steels: 55-60 HRC surface hardness
• Low-Alloy Steels: 60-70 HRC surface hardness
• Tool Steels: 70+ HRC surface hardness
• Stainless Steels: 70-80 HRC surface hardness
  ‍

Dimensional Considerations

• Growth per Surface: 0.0001" to 0.0003"
• Diameter Increase: Multiply surface growth by 2
• Process Temperature: 1055°F (568°C) - minimal distortion risk
• Stress Relief: May relieve residual stresses in cold-worked materials
  ‍

Environmental and Chemical Resistance

Excellent Resistance Against:

• Chloride Environments: Road salt, seawater, de-icing chemicals
• Industrial Chemicals: Most solvents, hydraulic fluids, lubricants
• Atmospheric Corrosion: Humidity, acid rain, industrial pollutants
• Temperature Extremes: Sub-freezing to 750°F (400°C) operating range
  ‍

pH Considerations

• Optimal Performance: Neutral to alkaline environments (pH 6-14)
• Acidic Conditions: Performance may be reduced in highly acidic environments (pH < 4)
  ‍

Optimizing Corrosion Resistance Through Design

Surface Preparation Requirements

• Cleanliness: Remove all contaminants, oils, and oxidation
• Pre-Treatment Options: Aluminum oxide blasting, glass beadings, and acid etching available
• Surface Finish: Starting finish affects final appearance and performance
  ‍

Design Considerations for Maximum Protection

• Avoid Sharp Corners: Sharp corners can become through-nitrided and embrittled, leading to micro-chipping during polishing, exposing base material to corrosion. Chamfer or break sharp edges, or for the best results radii of as 0.2mm are preferred.
• Machining Burrs: Adjust speeds & feeds to minimize surface burrs. Surface burrs can become through-nitrided and embrittled, leading to micro-chipping during polishing, exposing base material to corrosion.
• Material Selection: Choose compatible alloys for optimal results
  ‍

Process Selection Guidelines

• Standard Environments: Q process provides excellent protection
• Precision Requirements: QP process for improved surface finish but may reduce corrosion resistance depending on material, corner sharpness, and presence of surface burrs.
• Extreme Conditions: QPQ process for maximum corrosion resistance, restoring any corrosion resistance that may have been lost in polishing, and often superior to Q.
• Stainless Steel: QPQ recommended for optimal results
  ‍

Economic Benefits: More Than Just Protection

Reduced Replacement Costs

Components resist corrosion failure and operate for their intended design life, eliminating premature replacement due to surface degradation.

Re-Workable

It is very easy to re-nitride a component to reduce waste, save time, material & machining costs, and get your products refurbished and back in the field making you money.

Lower Maintenance Requirements

Corrosion-resistant surfaces require less frequent inspection, cleaning, and protective maintenance, reducing labor costs and operational downtime.

Improved System Reliability

Eliminating corrosion as a failure mode increases overall system reliability and reduces the risk of costly unexpected failures.

Total Cost of Ownership

While initial nitriding costs may be more than basic treatments, the extended service life and reduced maintenance provide superior long-term value.

Getting Started: Your Path to Superior Corrosion Protection

Initial Consultation

Contact our technical team to discuss your specific corrosion challenges, operating environment, and performance requirements. We'll help you select the optimal material and process variant for your application.

Sample Processing

We recommend processing sample components to validate performance in your specific application before committing to production quantities.

Production Implementation

Our streamlined processes and quality systems ensure consistent results from prototype through high-volume production.

Ready to Enhance Your Components' Corrosion Resistance?

Don't let corrosion compromise your components' performance and reliability. Liquid nitrocarburizing provides proven, long-lasting protection that outperforms conventional treatments while enhancing multiple surface properties simultaneously.

Contact Nitrera Technologies today to discuss how our corrosion-resistant nitriding processes can benefit your specific application:

Serving all United States and Canada, with specialized expertise in the West. Let us help make your metal components more efficient, durable, and cost-effective with our advanced liquid nitriding technology.

For additional technical resources and application guides, explore our complete library of articles on liquid nitriding, surface treatment best practices, and industry-specific solutions.
